Profile Racing C4 Hub Guards

REAR (DRIVE SIDE):
-The Profile Racing C4 Drive Side Guard is made from injection molded plastic.

-Must be used with the proprietary steel insert which threads on 14mm axle and substitutes existing drive side jam nut.

-Can be used on all 14mm rear Profile and Madera Cassette Hubs (including Madera V-2 and Gulf Coaster, and Profile Mini, Totem, Elite, and Zcoaster).

-Can be used on either RHD or LHD Hubs.

-Works only with 14mm axles

REAR:
-CNC machined from Delrin (a really strong and durable plastic)

-Can be used on Profile Elite, Mini ,Totem, and ZCoaster rear hubs as well Madera V2 Rear hub in 14mm Only.

-Works only with Madera and Profile 14mm axles as the guard fits over the jam nut. Will NOT work with 3/8 hubs.

-The hub guard slides over the 14mm jam nut – It will sit snug against your drop out and hub cone when the wheel is tightened down.

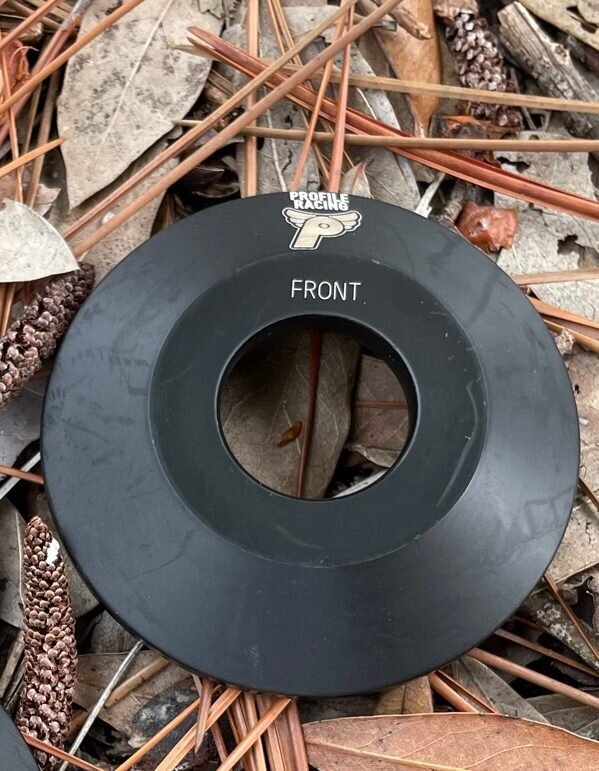

FRONT:
-CNC machined from Delrin (a really strong and durable plastic)

-Can be used on Profile Elite & Mini front hubs as well as Madera Pilot front hubs.

-Works only with Profile/Madera Knurled cones. Will NOT work with the older style, all aluminum front hub cones.

-You can buy an adaptable cone with the guard if you don’t have the right one.

-The hub guard slides over the hub cone – It will sit snug against your fork and hub cone when the wheel is tightened down.

Note: Plastic wears faster than aluminum, especially when used on very rough surfaces. The Madera C-4 guards are intended to be used for ramp and light street.
